Hammer tips
Hammer tips are available in various sizes and shapes with 700 BHN hardness, used in the sugar or coal industries for crushing and shredding thanks to excellent impact and abrasion resistance properties and enhanced service life.
Standard, Flared & butterfly shapes
- Machined steel base allows for quick & easy in-situ installation
- Cost effective as compared to hardfacing
- Superior edge retention & sharpness
- No need to rebuild edges
- Geometric & engineered design to increase wear life
- Tips can be rotated for maximum wear life
Applications
Shredder Hammer Tips are suited to:
- Sugar industry crushing and shredding equipment
- Coal industry crushing and shredding equipment
- Any high-impact, high-abrasion crushing or shredding application requiring long-lasting hammer tips

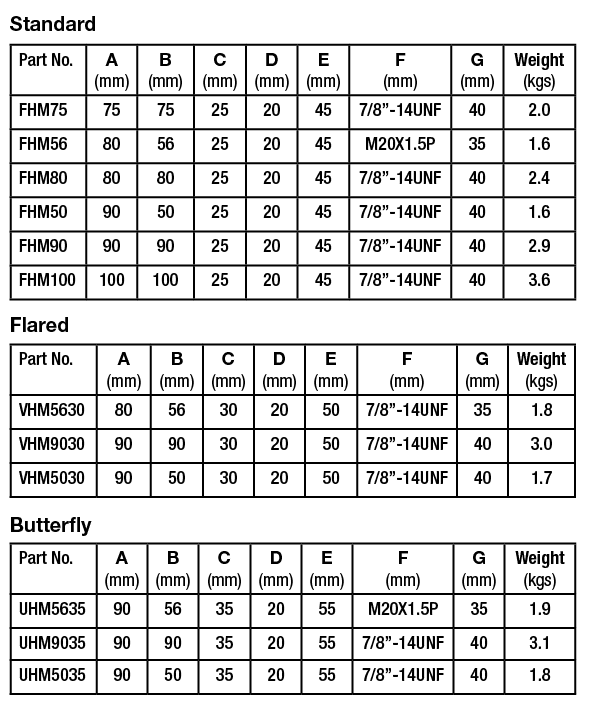

sizes
Standard

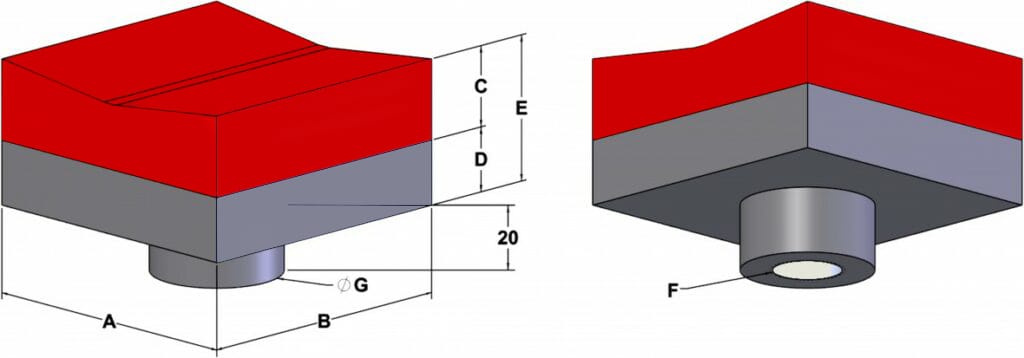

| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| FHM75 | 75 | 75 | 25 | 20 | 45 | 7/8"-14UNF | 40 | 2.0 |
| FHM56 | 80 | 56 | 25 | 20 | 45 | M20X1.5P | 35 | 1.6 |
| FHM80 | 80 | 80 | 25 | 20 | 45 | 7/8"-14UNF | 40 | 2.4 |
| FHM50 | 90 | 50 | 25 | 20 | 45 | 7/8"-14UNF | 40 | 1.6 |
| FHM90 | 90 | 90 | 25 | 20 | 45 | 7/8"-14UNF | 40 | 2.9 |
| FHM100 | 100 | 100 | 25 | 20 | 45 | 7/8"-14UNF | 40 | 3.6 |
Flared
| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| VHM5630 | 80 | 56 | 30 | 20 | 50 | 7/8"-14UNF | 35 | 1.8 |
| VHM9030 | 90 | 90 | 30 | 20 | 50 | 7/8"-14UNF | 40 | 3.0 |
| VHM5030 | 90 | 50 | 30 | 20 | 50 | 7/8"-14UNF | 40 | 1.7 |
Butterfly
| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| UHM5635 | 90 | 56 | 35 | 20 | 55 | M20X1.5P | 35 | 1.9 |
| UHM9035 | 90 | 90 | 35 | 20 | 55 | 7/8"-14UNF | 40 | 3.1 |
| UHM5035 | 90 | 50 | 35 | 20 | 55 | 7/8"-14UNF | 40 | 1.8 |
What hardness rating do shredder hammer tips have?
Shredder Hammer Tips have a 700 BHN hardness rating, providing excellent impact and abrasion resistance.
What industries commonly use these hammer tips?
Shredder Hammer Tips are commonly used in the sugar and coal industries for crushing and shredding applications.
What shapes are shredder hammer tips available in?
They are available in Standard, Flared, and Butterfly shapes.
Why are these hammer tips more cost effective than hardfacing?
The machined steel base allows for quick and easy in-situ installation, and the tips offer superior edge retention and sharpness with no need to rebuild edges, reducing both material and labour costs compared to hardfacing.
Can shredder hammer tips be rotated to extend their service life?
Yes — the tips can be rotated for maximum wear life, extending service life before replacement is needed.

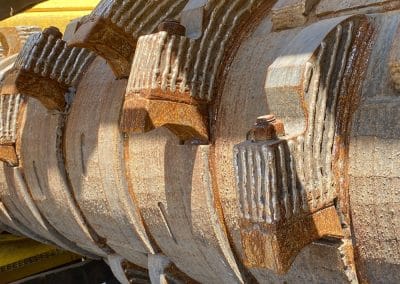

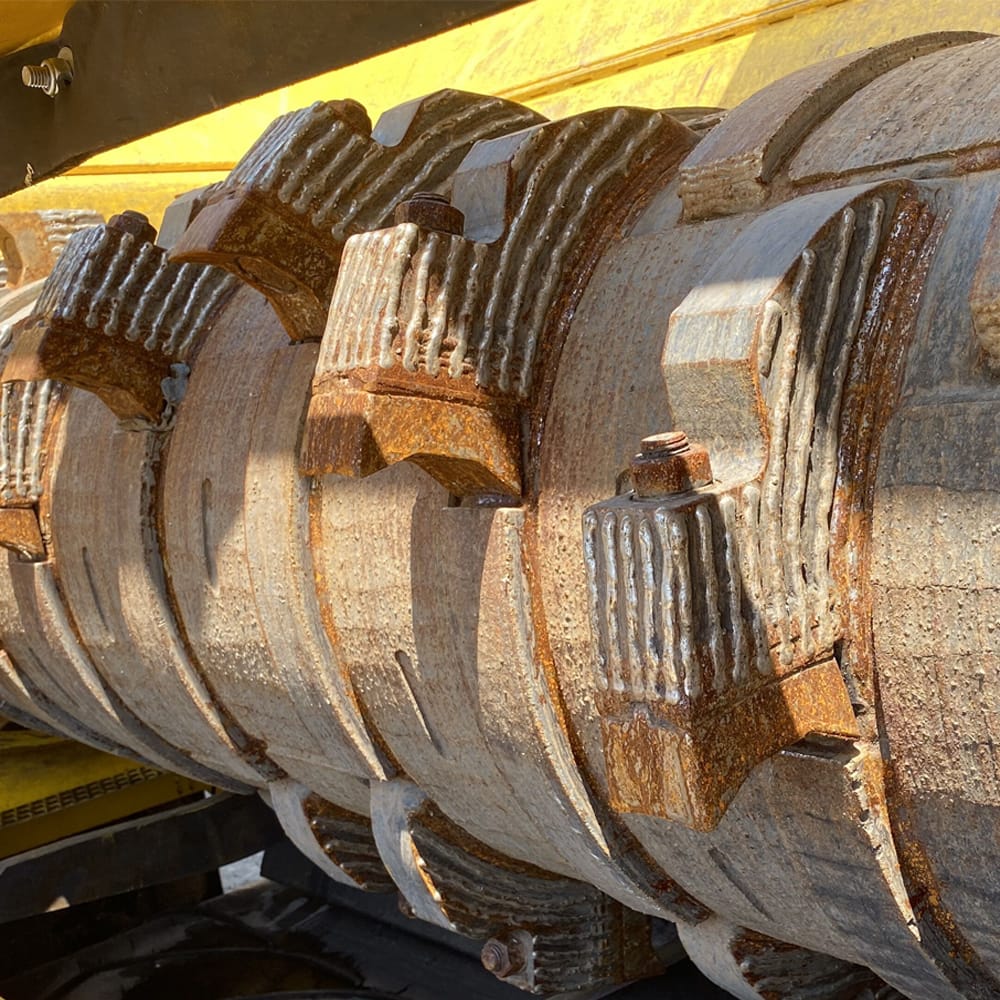

Butterfly Hammer Tips on Shredder for Sugar

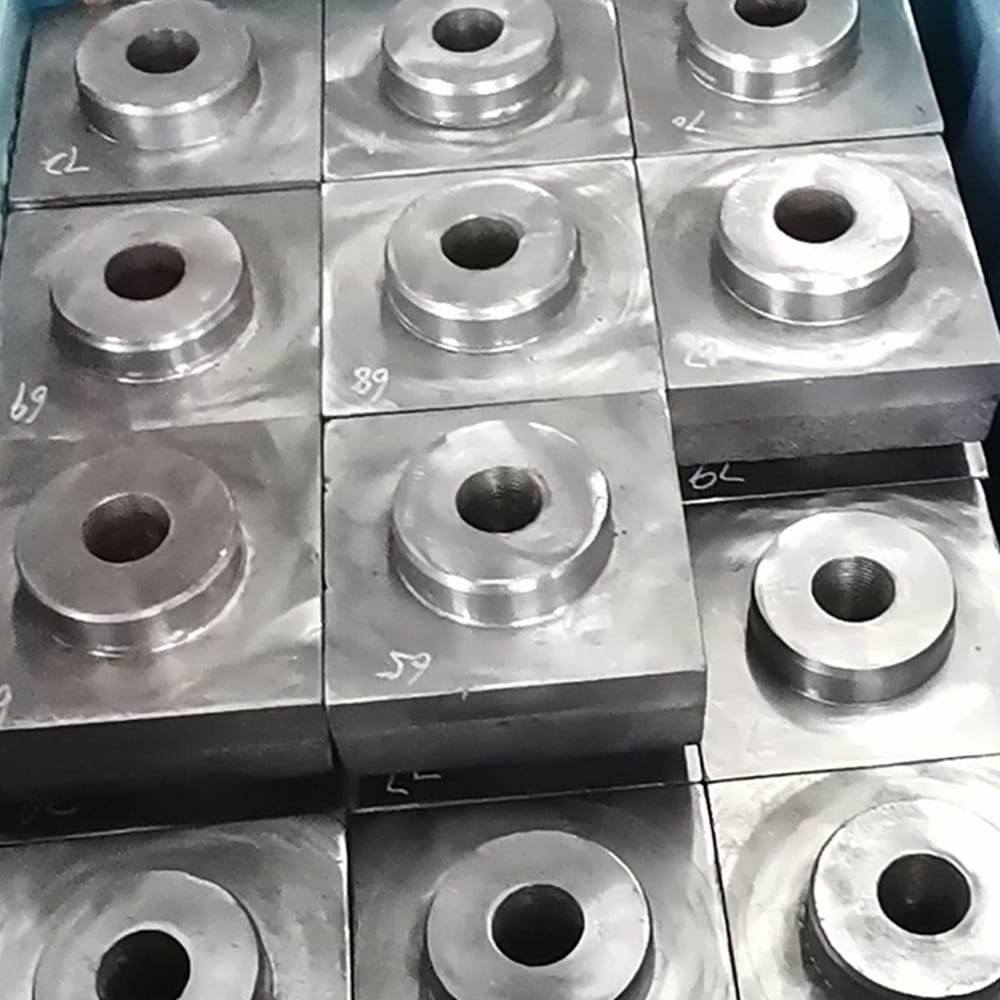

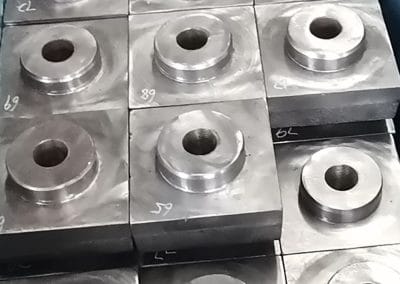

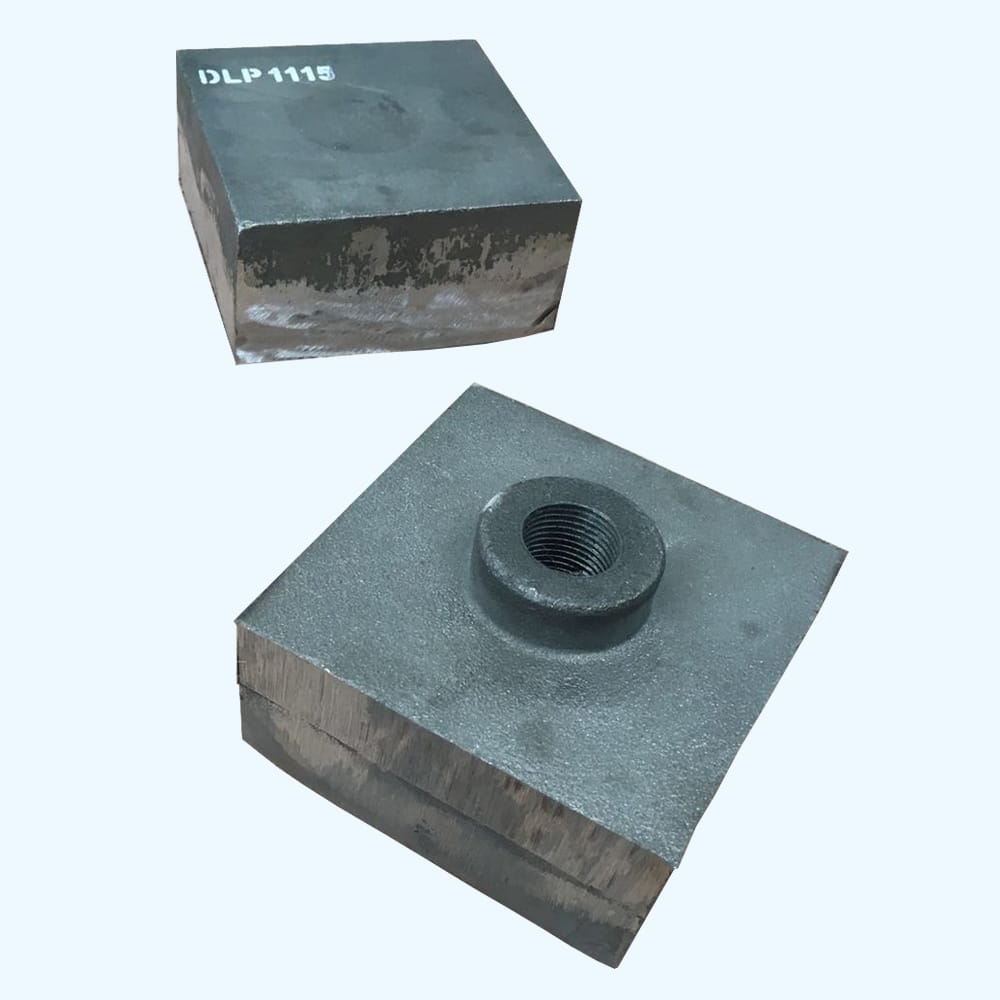

Standard Shredder Hammer Tip

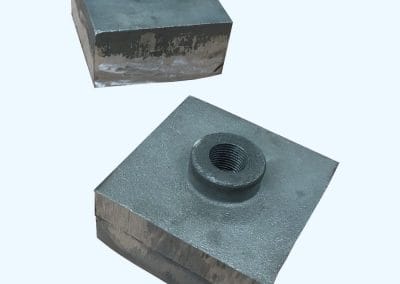

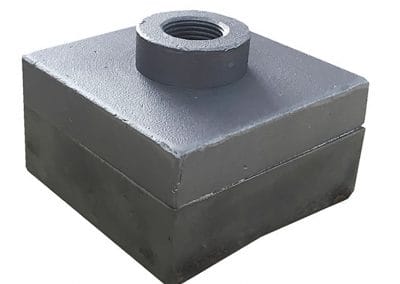

Flared Shredder Hammer Tip

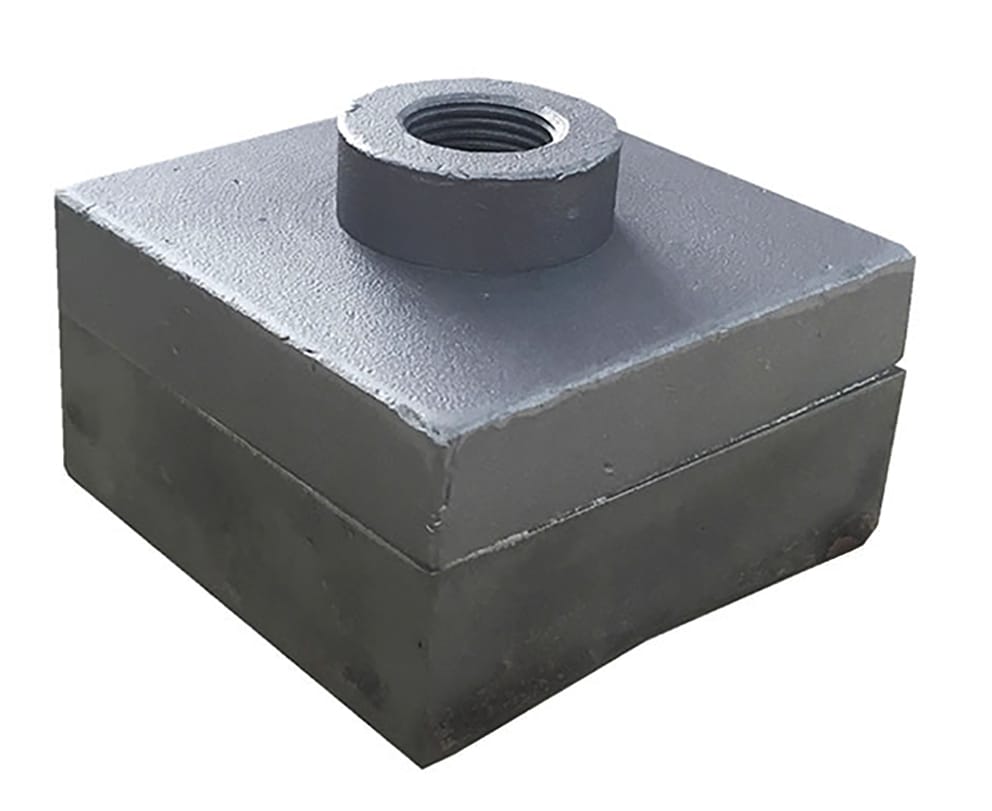

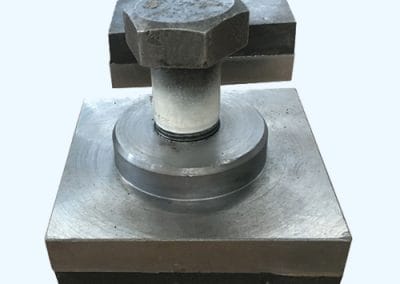

Standard Shredder Hammer Tip

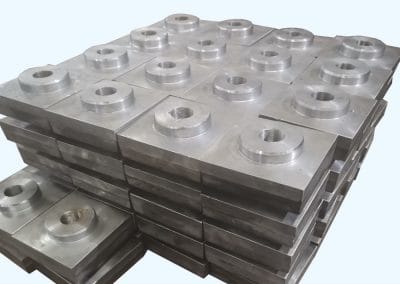

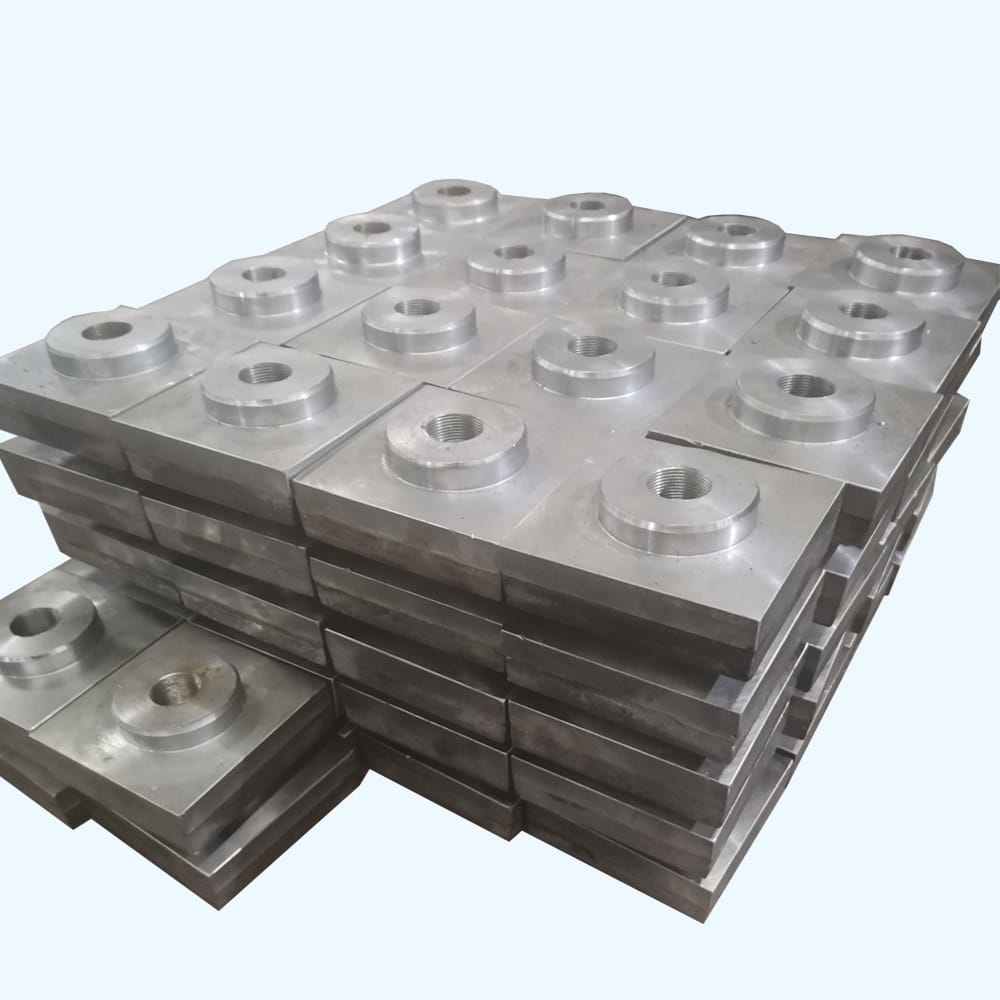

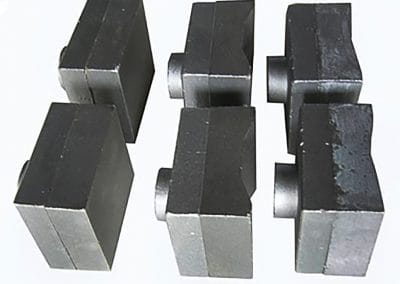

Shredder Hammer Tips

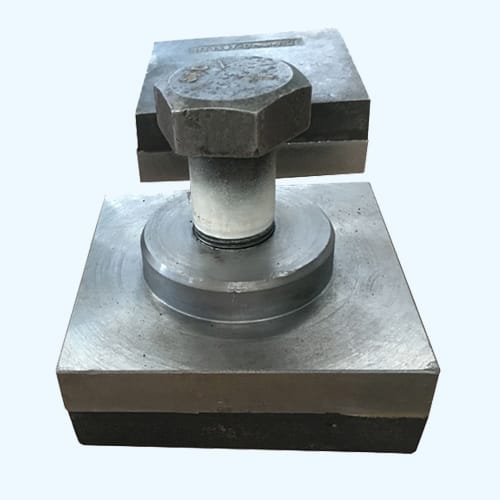

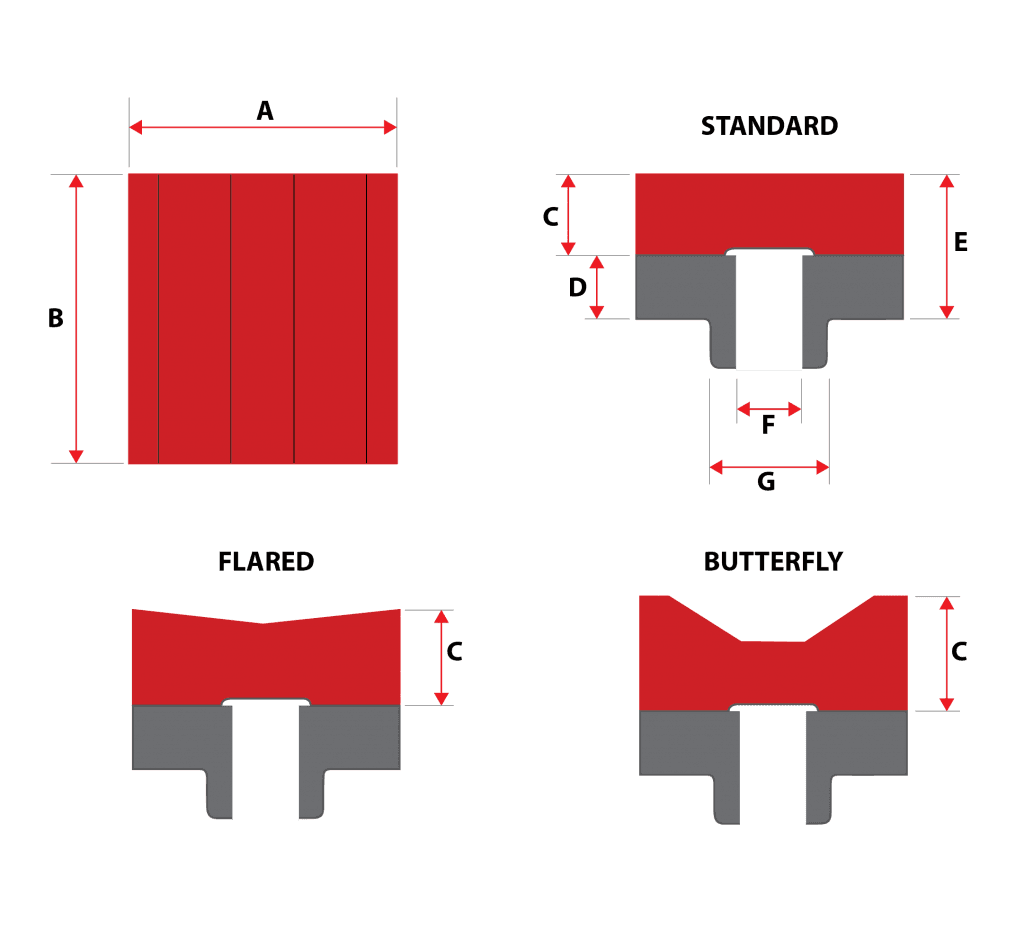

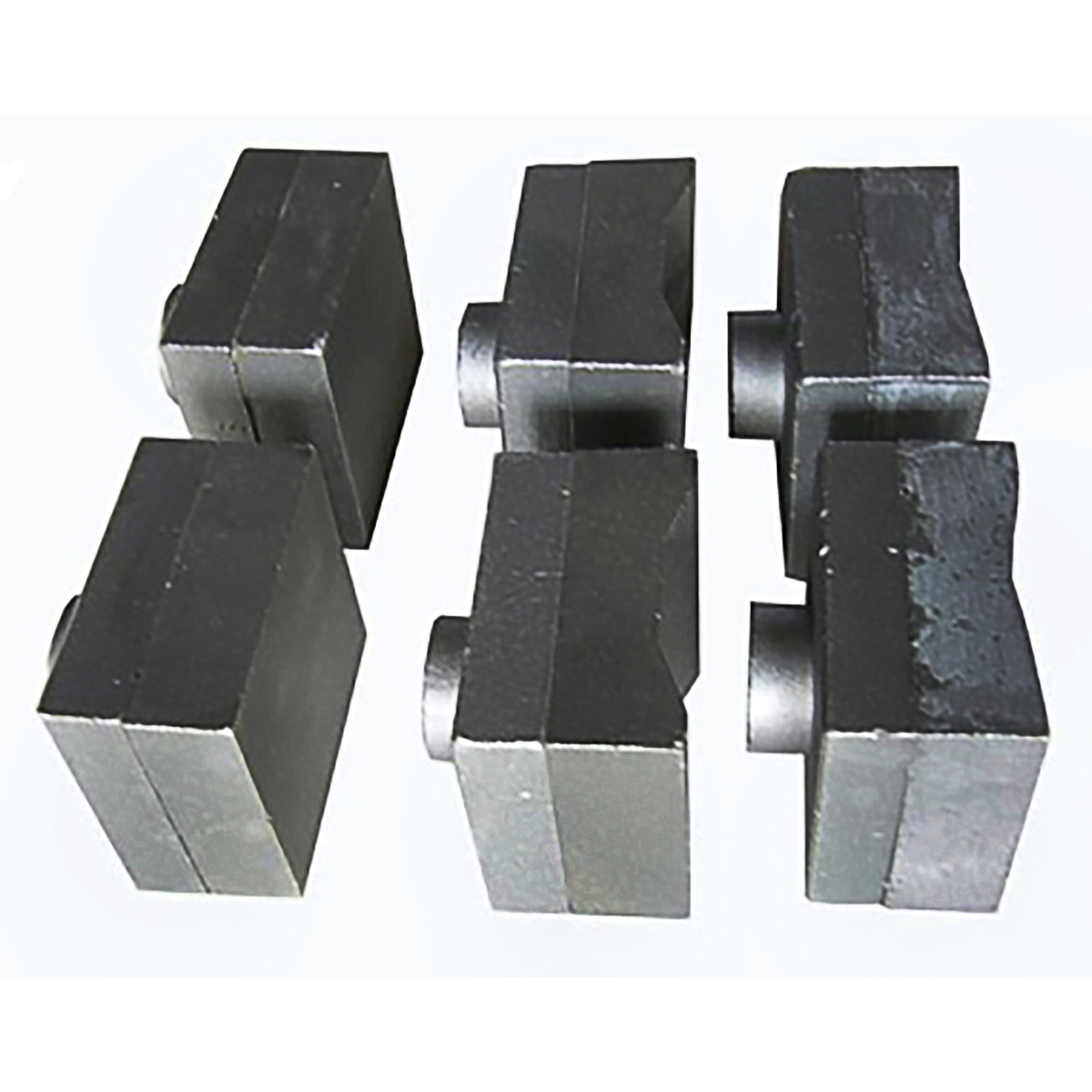

Standard Flared Butterfly Hammer Tips
